As a quick recap. In our meeting yesterday we tried a pilot version of a continuous recognition memory procedure for pictures with different levels of noise added.

I am still in the process of addressing some of the design issues in that experiment that we discussed, and I expect to be finished with that by early next week. Once I have a finalized version I will email you all a link to try the study one more time, and we will look at the data next week.

In addition, the assignment for this week is for you to do a little bit of research yourself, this time on rotation and orientation effects.

Many studies have shown that inverted or rotated stimuli may impair memory. Your first task is to read the very short paper (which is attached and in the zotero group library):

Scapinello, K. F., & Yarmey, A. D. (1970). The role of familiarity and orientation in immediate and delayed recognition of pictorial stimuli. Psychonomic Science, 21(6), 329–330.

Then use google scholar, or some other method (e.g., the references from the above paper), to find another paper investigating how rotation or inversion may impact recognition memory.

Make a blog post taking notes about the paper, and describing the extra paper that you found. After we finish the pictures in noise experiment, we’ll move on to making an experiment that attempts to replicate rotation effects.

Advanced

This section is not required, but may be of some interest (e.g., you could decide to work on this problem this week instead of the above). In a continuous recognition procedure items are presented one at time and a participants judges whether the item is new or old. A new item is one that has never been presented before. An old item is a repetition of a previously presented item.

The experiment that we tried in class was an example of a continuous recognition procedure. One of the issues with this design is controlling the mixture of new and old items in the sequence of trials. In our pilot experiment, there was a noticeable bias in our sequence. Specifically, most of the early trials were new items and most of later trials were old items.

The advanced problem is to consider our approach to the sequencing of new and old items. Ideally, we should be able to control:

  1. The proportion of new and old items (e.g. 50% each).
  2. The lag between repetitions. That is how many other items are between first and second presentations.
  3. Avoiding long runs of all new or all old

Here is an example approach that solves some of the problem, but not all of them.

Let’s say we have 100 pictures, represented here by the numbers 1 to 100

all_pictures <- 1:100

I will use R to duplicate the set of numbers, and then randomly shuffle the order. This process ensures that each item (1 to 100) is presented twice in a random order. As a result, there would be 100 new trials (the first time you see a particular number), and 100 old trials (the second time you a particular number).

trial_sequence <- sample(c(1:100,1:100))

However, simply shuffling the values randomly produces some other issues. The code chunk below analyzes the above 200 trial sequence to determine whether a particular trial is a new or old item. If the item is old, the lag between presentations is also computed.

df <- data.frame()
for(i in 1:200){
  num_positions <- which(trial_sequence %in% trial_sequence[i])
  if(i == num_positions[1]) {
    type <- "new"
    lag <- NA
  }
  if(i == num_positions[2]) {
    type <- "old"
    lag <- num_positions[2] - num_positions[1]
  }
  t_df <- data.frame(trial = i,
                     item = trial_sequence[i],
                     type = type,
                     lag = lag
                     )
  df <-  rbind(df,t_df)
}

This results in a data frame codes properties of the trial sequence. Notice that most of the beginning trials are new items, and most of the ending trials are old items.

knitr::kable(df)
trial item type lag
1 67 new NA
2 7 new NA
3 88 new NA
4 74 new NA
5 61 new NA
6 66 new NA
7 29 new NA
8 49 new NA
9 53 new NA
10 63 new NA
11 80 new NA
12 73 new NA
13 97 new NA
14 85 new NA
15 28 new NA
16 68 new NA
17 97 old 4
18 47 new NA
19 40 new NA
20 36 new NA
21 80 old 10
22 28 old 7
23 88 old 20
24 20 new NA
25 99 new NA
26 84 new NA
27 64 new NA
28 54 new NA
29 13 new NA
30 54 old 2
31 25 new NA
32 38 new NA
33 24 new NA
34 71 new NA
35 90 new NA
36 96 new NA
37 26 new NA
38 12 new NA
39 93 new NA
40 37 new NA
41 34 new NA
42 41 new NA
43 71 old 9
44 13 old 15
45 32 new NA
46 70 new NA
47 31 new NA
48 2 new NA
49 99 old 24
50 51 new NA
51 55 new NA
52 44 new NA
53 30 new NA
54 17 new NA
55 22 new NA
56 4 new NA
57 83 new NA
58 6 new NA
59 68 old 43
60 98 new NA
61 44 old 9
62 86 new NA
63 73 old 51
64 72 new NA
65 95 new NA
66 25 old 35
67 90 old 32
68 1 new NA
69 14 new NA
70 78 new NA
71 76 new NA
72 27 new NA
73 18 new NA
74 70 old 28
75 94 new NA
76 22 old 21
77 16 new NA
78 6 old 20
79 64 old 52
80 69 new NA
81 19 new NA
82 18 old 9
83 38 old 51
84 9 new NA
85 91 new NA
86 47 old 68
87 48 new NA
88 3 new NA
89 3 old 1
90 63 old 80
91 59 new NA
92 84 old 66
93 23 new NA
94 23 old 1
95 42 new NA
96 89 new NA
97 92 new NA
98 91 old 13
99 32 old 54
100 21 new NA
101 35 new NA
102 11 new NA
103 41 old 61
104 62 new NA
105 72 old 41
106 10 new NA
107 100 new NA
108 92 old 11
109 14 old 40
110 39 new NA
111 7 old 109
112 78 old 42
113 100 old 6
114 45 new NA
115 43 new NA
116 36 old 96
117 82 new NA
118 46 new NA
119 60 new NA
120 29 old 113
121 30 old 68
122 19 old 41
123 46 old 5
124 87 new NA
125 89 old 29
126 77 new NA
127 83 old 70
128 42 old 33
129 61 old 124
130 57 new NA
131 15 new NA
132 45 old 18
133 31 old 86
134 12 old 96
135 62 old 31
136 2 old 88
137 56 new NA
138 93 old 99
139 1 old 71
140 15 old 9
141 85 old 127
142 35 old 41
143 43 old 28
144 75 new NA
145 37 old 105
146 65 new NA
147 53 old 138
148 5 new NA
149 59 old 58
150 10 old 44
151 65 old 5
152 26 old 115
153 27 old 81
154 74 old 150
155 98 old 95
156 58 new NA
157 34 old 116
158 11 old 56
159 60 old 40
160 55 old 109
161 79 new NA
162 69 old 82
163 49 old 155
164 56 old 27
165 5 old 17
166 77 old 40
167 81 new NA
168 48 old 81
169 17 old 115
170 52 new NA
171 21 old 71
172 8 new NA
173 87 old 49
174 33 new NA
175 20 old 151
176 67 old 175
177 76 old 106
178 9 old 94
179 75 old 35
180 79 old 19
181 33 old 7
182 81 old 15
183 50 new NA
184 86 old 122
185 52 old 15
186 24 old 153
187 94 old 112
188 4 old 132
189 16 old 112
190 66 old 184
191 58 old 35
192 57 old 62
193 51 old 143
194 95 old 129
195 39 old 85
196 40 old 177
197 50 old 14
198 82 old 81
199 8 old 27
200 96 old 164

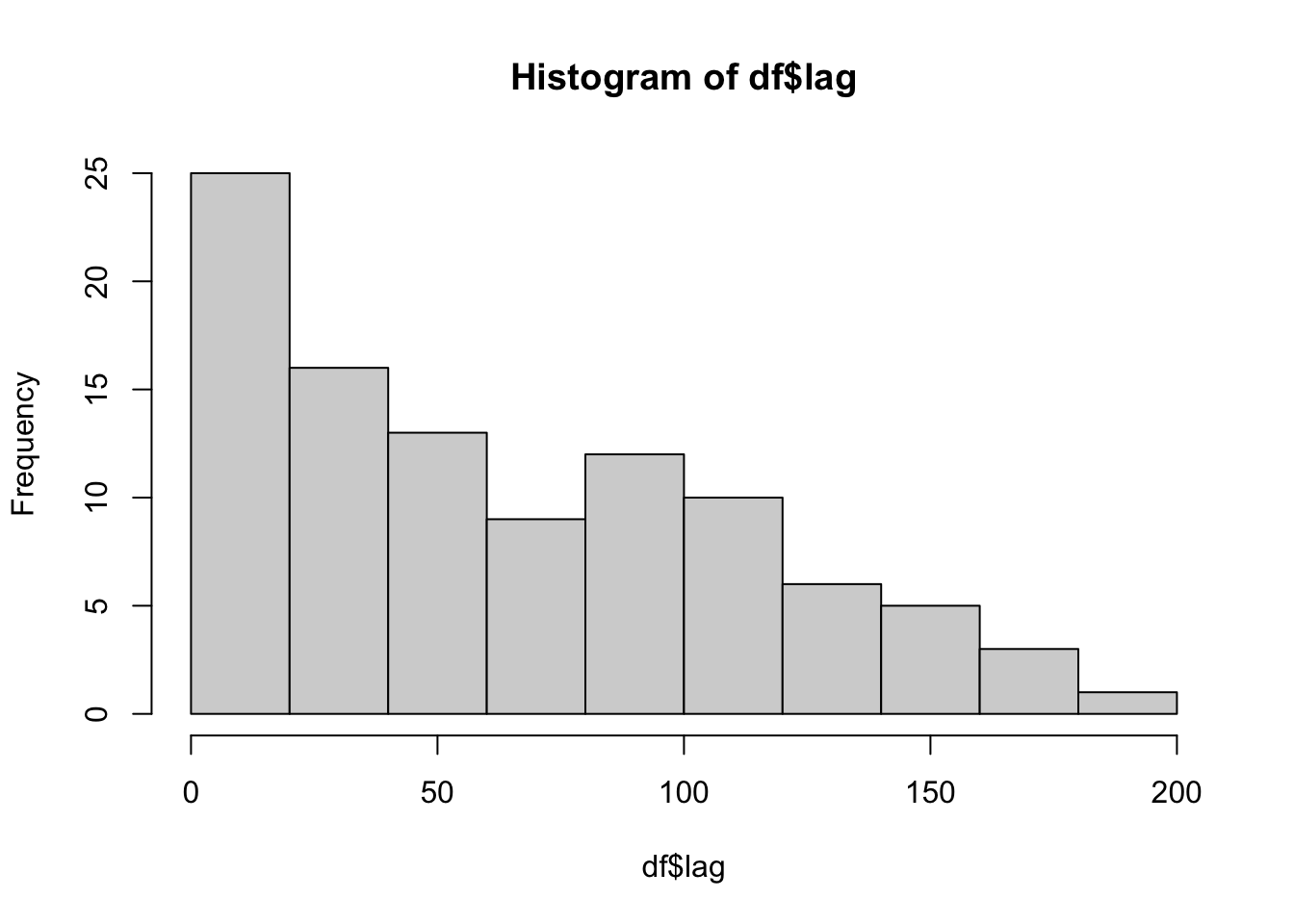

We can also look at the distribution of lags for old items. The random shuffling produced a wide range of lags, including very short lags.

hist(df$lag)

Next steps

Ideally we want to create a different way of mixing items together that allows:

  1. Reduction of bias toward new/old items across the sequence. The beginning shouldn’t be mostly new items, and the end shouldn’t be mostly old.

  2. More control over the lags between first and second presentation of an item. For example, all items might have a minimum lag of 50 or greater.

I’ll be working on solutions to this problem, and feel free to try your own as your work for this week. The solution to this type of problem requires an algorithm for mixing the items, and then some analysis of the sequence to show that it expresses the desired properties.

One of the papers in our zotero group library used a continuous recognition procedure, and their method section describes an approach that involves “test” items, and “filler” items. Here’s the reference:

Isola, P., Xiao, J., Torralba, A., & Oliva, A. (2011). What makes an image memorable? Computer Vision and Pattern Recognition (CVPR), 2011 IEEE Conference On, 145–152.

Updates

Here’s what I came up with.

Verbal description of algorithm

This algorithm is designed to create a sequence of items with specific characteristics:

  1. Choose a total of “n” items to be presented twice, for example, selecting 200 pictures for double presentation.

  2. Define a minimum and maximum lag range, representing the number of items between the first and second presentation (e.g., a lag range of 50 to 100).

  3. Calculate the total number of trials as the product of the number of pictures (n) times 2, and then add the maximum lag range (e.g., 200 * 2 + 100 = 500 trials).

  4. Randomly distribute the first occurrences of the items within the first 400 trials (considering the maximum lag range) to avoid exceeding the trial limit.

  5. Assign the remaining unassigned spots in the sequence to the second occurrences of each item. Iterate through the sequence, and for each first-occurrence item, find open positions within the specified lag range. Randomly choose one and fill it with the second occurrence of the current item. Repeat this process throughout the sequence.

  6. Any remaining unassigned spots will be filled with “filler” items. The aim is to balance the beginning and end of the sequence to avoid bias toward new or old items. Here’s how it’s done:

    • Filler items are introduced, which are additional items.
    • A small window of filler items is selected (e.g., four filler items).
    • The array of filler items is doubled, and the order is shuffled (e.g., 1,2,3,4,1,2,3,4 -> 1,3,2,2,4,3,1,4).
    • Filler items are assigned to the missing values in the trial sequence based on these shuffled indices.
    • This process is repeated across the entire sequence to incorporate new sets of filler items.

In summary, the algorithm is designed to generate a sequence of items, ensuring that first and second occurrences of items are appropriately spaced and filling any gaps with filler items to avoid bias of old vs new items at the beginning and end of the sequence.

R code version

# set total number of items that will be repeated
n_items <- 200
# set range of possible lags
lag_range <- c(50,100)
# calculate total_trials needed
total_trials <- (n_items*2)+lag_range[2]

# spread out the first occurrences of each item across the first 400 positions. This ensures a relatively uniform mixture of new items across the first 400 trials.
# initial_spread has 500 slots, 1s are randomly assigned to 200 positions within the first 400 slots. 0s are assigned everywhere else.
# 1s indicate that an item will receive its first presentation in that slot
initial_spread <- c(sample(c(rep(1,200),rep(0,200))),rep(0,100))

# create an empty vector to hold the trial sequence.
# The trial sequence will also have 500 slots, each slot will be filled with a integer representing a specific item (from 1 to 200, and greater than 200 for filler items)
sequence <- c()

# assign first occurrences of each of the 200 items to the locations that had 1s.
sequence[which(initial_spread == 1)] <- 1:200

# get available spots, these are spots with 0s
available <- which(initial_spread == 0)

# create a vector to hold items that have already been presented twice
old <- c()

# loop across each item in sequence
for(i in 1:length(sequence)){
  # make sure item is an integer
  if(is.na(sequence[i]) == FALSE){
    # make sure item hasn't been presented twice already
    if(sequence[i] %in% old == FALSE){
      # whatever item this is will be presented twice, add it to old
      old <- c(old,sequence[i])
      # get possible open spots that are within the lag range
      possible_spots <- available[available > i+lag_range[1] & available < i+lag_range[2]]

      # error checking if there are no spots left
      if(length(possible_spots) < 1) {
        print(i)
        break
      }

      # pick a random open spot
      spot_choice <- sample(possible_spots)[1]

      # assign the current item to the chosen spot
      sequence[spot_choice] <- sequence[i]

      # update the available spots
      initial_spread[spot_choice] <- 1
      available <- which(initial_spread == 0)
    }
  }
}

# At this point the sequence should be full of the values 1 to 200
# with each value occurring twice
# and with the lag between repetitions randomly assigned within the lag range
# all other values are NA, indicating no item has been assigned.
# These items need to be "filled" with non-critical items
# non-critical items will be extra items with much shorter lags
# they are included to balance the proportion of old/new items across the sequence

# add fillers to NA

# get the number of NAs in the sequence
num_NA <- length(sequence[is.na(sequence)])

# make the count even
if(num_NA %% 2 != 0) num_NA <-  num_NA+1

# figure out how many sets will be needed
blocks <- ceiling(num_NA/8)

# randomly generate sets of item indices with short lags
# make sure there is enough to cover all NAs
new_order <- c(replicate(blocks,sample(c(1:4,1:4))))
new_vals <- rep(seq(200,200+((blocks-1)*4),4),each=8)

# Filler items are assigned values greater than 200
NA_sequence <- new_vals+new_order

# add filler items to the sequence
na_cnt <- 0
for(i in 1:length(sequence)){
  if(is.na(sequence[i]) == TRUE){
    na_cnt <- na_cnt + 1
    sequence[i] <- NA_sequence[na_cnt]
  }
}

Print out example sequence

print(sequence)
  [1] 202   1   2   3 203   4   5   6   7   8   9  10 110  12  13 201 202 204
 [19] 201 204 203 208 207  14  15  16 206 208  17 207  18 206 205 205 212 212
 [37] 211  19 209  20 210  21  22  23 211 210  24 209  25  26 121 214  28  29
 [55] 214 216   1  30 215  31  32 216 215  33  34 213  35  36  37  38  13 213
 [73]  39 220  40  41  42   4  11  43 125 219   6   2 218  12  45  46  47   9
 [91]   8  48  49  50   3 217  51 219 220   5  19  52  20 218  18   7  27 217
[109] 223  10  53  28 221  54 222 224  17  55  21  25  23  15  14  16  56  57
[127]  58  24  59  60  61  38  62  63  64  65  66  26  67  68  22  37  69  29
[145]  70  71  34  47  32  72  30  73  31  39  33  74  75  50  51  76  77  40
[163]  78 134  45  35  79  80  41  81  82  42  83  44  43  84  52  85  48  86
[181]  46  87  88  89  90  56  57 223  91  92  49  66  93  94  95  55  60  96
[199]  58  97  98  71  99  53  62 100  54 224 101  59 102 103  65 104  69 105
[217] 106 107 108 109  67 110 111  61 112 113 114 115 116  63  64 117 118 119
[235]  68  70  75 120 121 122 123 124 125  76  91 126  72  79  78  74  73 127
[253]  96 128 129 130 131  77 132 133 134 135  81  82  80 136  84  83  87  94
[271] 137  86 100  90  85 138 139 140 133 141 142  98  89  95  92 109 143  93
[289] 144 145 124 146 147 148 149 150 151  97 152 153 101 103 154 155 156 157
[307] 158 159 160 102 161 104 106 162 105 107 163 108 114 164 165 111 113 112
[325] 116 166 115 120 119 117 118 167 168 169 122 170 171 172 123 136 173 174
[343] 175 176 126 130 177 129 127 178 179 128 180 181 132 131 182 183 184 185
[361] 135 186 140 146 187 145 188 138 189 137 190 191 139 147 152 192 141 193
[379] 150 142 144 194 151 143 155 195 148 149 196 222 197 156 153 159 168 198
[397] 199 200 165 221 163 154 160 170 157 158 162 161 183 227 225 228 226 173
[415] 181 172 164 167 171 186 225 189 169 227 166 226 176 228 178 232 229 180
[433] 232 230 177 229 231 231 184 194 174 175 230 187 188 179 197 235 233 234
[451] 182 235 234 233 236 236 240 190 185 238 237 239 191 237 240 196 200 192
[469] 238 239 243 242 243 244 241 193 242 195 244 241 248 246 246 247 245 247
[487] 245 198 248 251 199

To Do

Come back and do some analyses of the sequence to show it has the properties we intend it to have. Note also, this algorithm would need to be implemented in javascript for our experiment (already done).
