10 T-tests

“10/8/2020 | Last Compiled: 2022-04-26”

10.1 Reading

Vokey & Allen36, Chapter 14; Crump, Navarro, & Suzuki37, Chapter 6

10.2 Overview

This lab demonstrates how to conduct one sample, paired sample, and independent sample t-tests in R, and uses R as a tool to develop insight into the conceptual foundations of the t-test.

10.3 Historical Background

William Sealy Gosset published the t-test under the pseudonym “Student”, which is why the test is sometimes called “Student’s t-test.”38 There is dispute about the origin and meaning of \(t\). One hypothesis is that \(s\) was commonly used at the time to refer to sample statistics, so Gosset chose \(t\) as the next letter, perhaps indicating a “step-up” in thinking about sample statistics? Gosset published under a pseudonym because he was an employee of Guinness Breweries at the time, and he was hired to examine issues in making inferences about small samples in brewing beer. The test he developed could have been the intellectual property of Guinness, but Gosset thought the test could be broadly used, so he published it under a pseudonym to protect his job. Pearson, E. S.39 provides a biography of Gosset. Sawilowsky, S. S., & Blair, R. C.40 conduct simulations and examine how robust the t-test is to violations of assumptions.

10.4 Practical I: t.test()

Base R includes the t.test() function that computes several forms of t-tests.

?t.test

Here are three quick examples of computing one sample, paired sample and independent sample t-tests using R.

10.4.1 One-sample t-test

some_random_means <- rnorm(10,0,1)
t.test(some_random_means, mu=0)
#>
#>  One Sample t-test
#>
#> data:  some_random_means
#> t = -0.47971, df = 9, p-value = 0.6429
#> alternative hypothesis: true mean is not equal to 0
#> 95 percent confidence interval:
#>  -0.5577339  0.3625736
#> sample estimates:
#>   mean of x
#> -0.09758017

10.4.2 Paired-sample t-test

A_means <- rnorm(10,0,1)
B_means <- rnorm(10,0,1)

t.test(A_means,B_means,paired=TRUE)
#>
#>  Paired t-test
#>
#> data:  A_means and B_means
#> t = -2.3541, df = 9, p-value = 0.04301
#> alternative hypothesis: true difference in means is not equal to 0
#> 95 percent confidence interval:
#>  -2.16192615 -0.04307544
#> sample estimates:
#> mean of the differences
#>               -1.102501

10.4.3 Independent-sample t-test

A_means <- rnorm(10,0,1)
B_means <- rnorm(10,0,1)

t.test(A_means,B_means, var.equal=TRUE)
#>
#>  Two Sample t-test
#>
#> data:  A_means and B_means
#> t = -0.37344, df = 18, p-value = 0.7132
#> alternative hypothesis: true difference in means is not equal to 0
#> 95 percent confidence interval:
#>  -1.2643478  0.8827081
#> sample estimates:
#>  mean of x  mean of y
#> -0.3786486 -0.1878288

10.4.4 formula syntax for data frames

In the above examples, the t.test() function was applied to vectors containing sample means. It is also possible to apply the t.test() function to long data frames using the ~ syntax.

my_data <- data.frame(group = rep(c("A","B"), each=10),
                      means = rnorm(20,0,1))

t.test(means~group, var.equal=TRUE, data=my_data)
#>
#>  Two Sample t-test
#>
#> data:  means by group
#> t = -2.9425, df = 18, p-value = 0.008707
#> alternative hypothesis: true difference in means between group A and group B is not equal to 0
#> 95 percent confidence interval:
#>  -1.7676000 -0.2949594
#> sample estimates:
#> mean in group A mean in group B
#>      -0.8516509       0.1796288

10.4.5 one or two-sided test

By default, the t.test() function provides a two sided test, but the options can be specified using the alternative = c("two.sided", "less", "greater") input parameter.

some_random_means <- rnorm(10,0,1)
t.test(some_random_means, mu=0, alternative = "two.sided")
#>
#>  One Sample t-test
#>
#> data:  some_random_means
#> t = -2.2015, df = 9, p-value = 0.05521
#> alternative hypothesis: true mean is not equal to 0
#> 95 percent confidence interval:
#>  -1.01340444  0.01377459
#> sample estimates:
#>  mean of x
#> -0.4998149
t.test(some_random_means, mu=0, alternative = "less")
#>
#>  One Sample t-test
#>
#> data:  some_random_means
#> t = -2.2015, df = 9, p-value = 0.0276
#> alternative hypothesis: true mean is less than 0
#> 95 percent confidence interval:
#>         -Inf -0.08363359
#> sample estimates:
#>  mean of x
#> -0.4998149
t.test(some_random_means, mu=0, alternative = "greater")
#>
#>  One Sample t-test
#>
#> data:  some_random_means
#> t = -2.2015, df = 9, p-value = 0.9724
#> alternative hypothesis: true mean is greater than 0
#> 95 percent confidence interval:
#>  -0.9159963        Inf
#> sample estimates:
#>  mean of x
#> -0.4998149

10.4.6 var.equal and Welch’s correction

The t.test() function also makes default assumptions about the indpendent samples test. By, default it applies a correction called Welch’s correction. This correction is related to the assumption of equal variances between the samples in each group.

A <- rnorm(10,0,1)
B <- rnorm(10,0,1)
t.test(A,B)
#>
#>  Welch Two Sample t-test
#>
#> data:  A and B
#> t = -0.93736, df = 17.819, p-value = 0.3611
#> alternative hypothesis: true difference in means is not equal to 0
#> 95 percent confidence interval:
#>  -1.4402070  0.5519985
#> sample estimates:
#>  mean of x  mean of y
#> -0.2656442  0.1784601

To conduct a t-test without the correction set var.equal=TRUE. This only applies to the independent sample case where there are two variances.

t.test(A,B, var.equal=TRUE)
#>
#>  Two Sample t-test
#>
#> data:  A and B
#> t = -0.93736, df = 18, p-value = 0.361
#> alternative hypothesis: true difference in means is not equal to 0
#> 95 percent confidence interval:
#>  -1.4394817  0.5512733
#> sample estimates:
#>  mean of x  mean of y
#> -0.2656442  0.1784601

10.4.7 t.test() contents

The t.test() function has two kinds of outputs. First, it prints the results to the console (as we saw above). Second, it outputs a list containing the components of test. The individual pieces of the t-test can be saved and accessed by putting the results of the t.test into a new variable.

 (my_results <- t.test(A,B, var.equal=TRUE))
#>
#>  Two Sample t-test
#>
#> data:  A and B
#> t = -0.93736, df = 18, p-value = 0.361
#> alternative hypothesis: true difference in means is not equal to 0
#> 95 percent confidence interval:
#>  -1.4394817  0.5512733
#> sample estimates:
#>  mean of x  mean of y
#> -0.2656442  0.1784601

For example:

my_results$statistic
#>          t
#> -0.9373613
my_results$parameter
#> df
#> 18
my_results$p.value
#> [1] 0.3609806
my_results$estimate
#>  mean of x  mean of y
#> -0.2656442  0.1784601

10.4.8 papaja reporting with apa_print()

The papaja package has convenient functions for automating the writing of t-test results.

library(papaja)
apa_print(my_results)
#> $estimate
#> [1] "$\\Delta M = -0.44$, 95\\% CI $[-1.44, 0.55]$"
#>
#> $statistic
#> [1] "$t(18) = -0.94$, $p = .361$"
#>
#> $full_result
#> [1] "$\\Delta M = -0.44$, 95\\% CI $[-1.44, 0.55]$, $t(18) = -0.94$, $p = .361$"
#>
#> $table
#> A data.frame with 5 labelled columns:
#>
#>   estimate      conf.int statistic df p.value
#> 1    -0.44 [-1.44, 0.55]     -0.94 18    .361
#>
#> estimate : $\\Delta M$
#> conf.int : 95\\% CI
#> statistic: $t$
#> df       : $\\mathit{df}$
#> p.value  : $p$
#> attr(,"class")
#> [1] "apa_results" "list"

For example, this t-test result, \(t(18) = -0.94\), \(p = .361\), was printed using an r code snippet inserted into the text of this .Rmd.

10.5 Conceptual I: Simulating the t-test

In this section we will create simulations of the various components of a an independent samples t-test. One goal will be to make the code general, so that we can simulate a wide range of designs.

We will simulate an experimental situation involving two groups A and B. We will assume they have an equal number of subjects (N), and that each subject was measured a similar number of times (X times). We will also simulate the null-hypothesis, which assumes that the experimental manipulation was ineffective. As a result, we assume that the subjects in A and B are randomly sampled from the same underlying distribution. We will assume the raw scores for each subject come from a normal distribution.

10.5.1 Simulating a single experiment

#subjects per group
N <- 10
# measurements per subject
X <- 2

# distribution assumptions
A_mean <- 100
B_mean <- 100

A_sd <- 25
B_sd <- 25

With the above assumptions in place, it is possible to simulate the results of a single experiment.

A_scores <- rnorm(N*X,A_mean,A_sd)
B_scores <- rnorm(N*X,B_mean,B_sd)

sim_data <- data.frame(groups = rep(c("A","B"),each = N*X),
                       subjects = rep(rep(1:N,each = X),2),
                       scores = c(A_scores,B_scores))

library(dplyr)

subject_means <- sim_data %>%
  group_by(groups,subjects) %>%
  summarize(means = mean(scores), .groups = 'drop')

t.test(means~groups, var.equal =TRUE,data = subject_means)
#>
#>  Two Sample t-test
#>
#> data:  means by groups
#> t = -0.024415, df = 18, p-value = 0.9808
#> alternative hypothesis: true difference in means between group A and group B is not equal to 0
#> 95 percent confidence interval:
#>  -19.15564  18.71554
#> sample estimates:
#> mean in group A mean in group B
#>        101.6500        101.8701

As one alternative, here is another example of the above in a one-liner:

t.test(replicate(N, mean(rnorm(X, A_mean, A_sd))),
       replicate(N, mean(rnorm(X, B_mean, B_sd))),
       var.equal = TRUE)
#>
#>  Two Sample t-test
#>
#> data:  replicate(N, mean(rnorm(X, A_mean, A_sd))) and replicate(N, mean(rnorm(X, B_mean, B_sd)))
#> t = 0.67402, df = 18, p-value = 0.5089
#> alternative hypothesis: true difference in means is not equal to 0
#> 95 percent confidence interval:
#>  -14.41213  28.02779
#> sample estimates:
#> mean of x mean of y
#>  98.22765  91.41983

10.5.2 Simulating distributions of experiments

“Any experiment may be regarded as forming an individual of a ‘population’ of experiments which might be performed under the same conditions. A series of experiments is a sample drawn from this population.” — William Sealy Gossett.41

This quote is the first sentence from Student’s formative paper on the t-test. In the previous section we have simulated a single experiment. If we conduct this simulation several thousand times, we can create the “population” of experiments that could have occurred under the same conditions. The very general idea is to create a sampling distribution of experiments, and then compare the results of an actual experiment to distributions of possible experiments.

10.5.2.1 The distribution of mean differences

If this experiment was repeated a 1000 times, then each time there could be a mean difference between Group A and B. Thus, if the mean difference was the sample statistic used to summarize the result of this experiment, the sampling distribution of mean differences could be estimated by simulation:

sim_mean_diffs <- replicate(1000, mean(replicate(N, mean(rnorm(X, A_mean, A_sd)))) - mean(replicate(N, mean(rnorm(X, B_mean, B_sd)))))

hist(sim_mean_diffs)

10.5.2.2 The distribution of t

Student used the \(t\) formula, rather than mean differences to summarize the sample data from a two group experiment. The \(t\) formula normalizes the mean difference by the estimated standard error of the mean.

\(t = \frac{\bar{X}_1 - \bar{X}_2}{s_p\sqrt{2/n}}\)

\(s_p = \sqrt{\frac{s^2_{X_1} + s^2_{X_2}}{2}}\)

Although we already have distribution functions for t-values, a t-distribution could be constructed by simulation. Here is a histogram of the 1000 \(t\) values that could have happened.

sim_ts <- replicate(1000, t.test(replicate(N, mean(rnorm(X, A_mean, A_sd))),
                                 replicate(N, mean(rnorm(X, B_mean, B_sd))),
                                 var.equal = TRUE)$statistic)
hist(sim_ts)

10.5.3 t distribution functions

R comes with the dt, pt, qt, rt family of function for t-distributions as well.

For example, rather than simulating t values as we did above, we could sample 1000 \(t\) values from a t-distribution with df = 18.

hist(rt(1000,df=18))

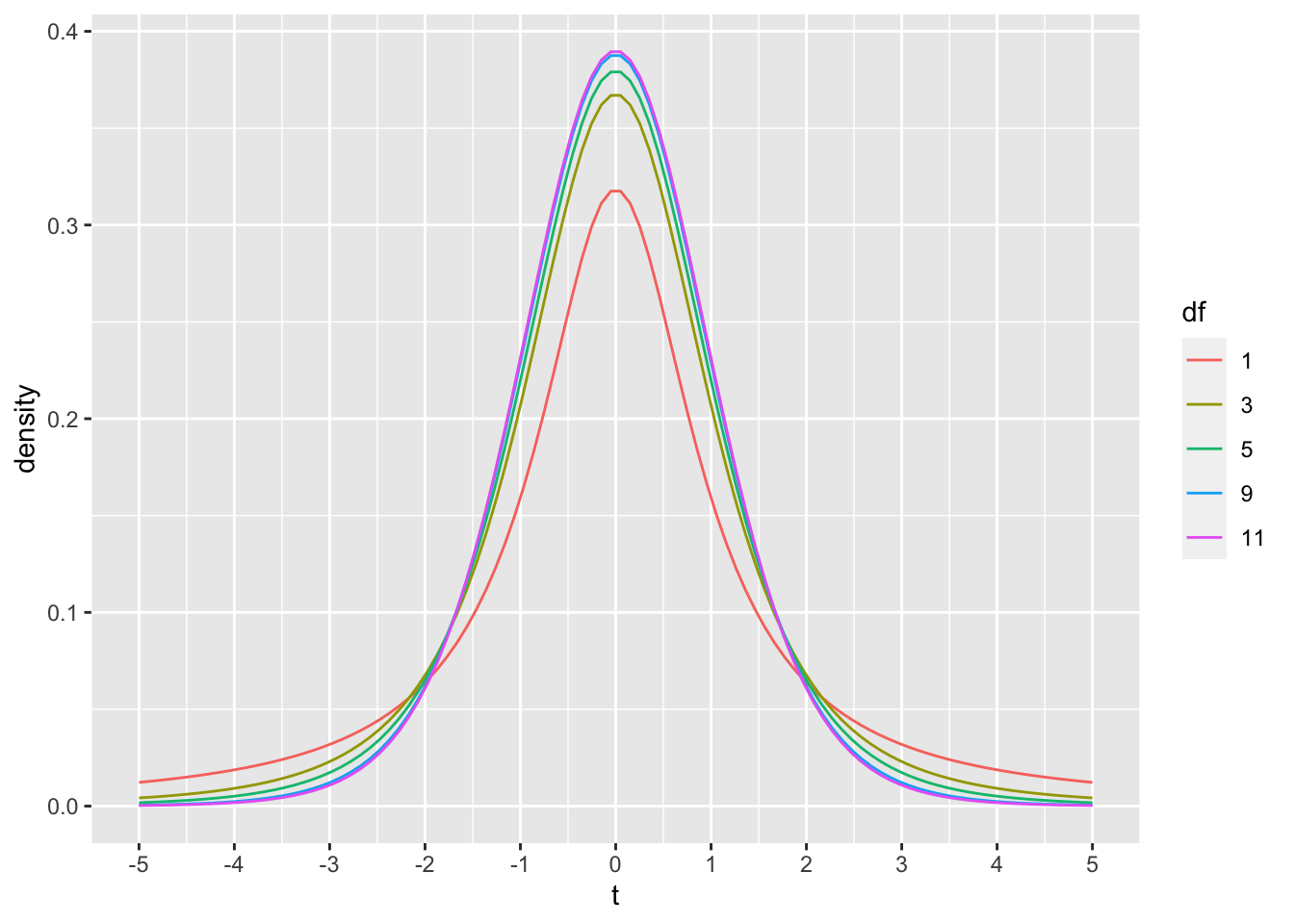

THe dt function could be used to draw the probability density function for t-distributions across a range of degrees of freedom.

library(ggplot2)
plot_df <- data.frame(values = c(dt(x=seq(-5,5,length.out = 100), df=1),
                                 dt(x=seq(-5,5,length.out = 100), df=3),
                                 dt(x=seq(-5,5,length.out = 100), df=5),
                                 dt(x=seq(-5,5,length.out = 100), df=9),
                                 dt(x=seq(-5,5,length.out = 100), df=11)
                                 ),
                      x = rep(seq(-5,5,length.out = 100),5),
                      df = as.factor(rep(c(1,3,5,9,11), each = 100))
                      )

ggplot(plot_df, aes(x = x, y=values, color=df, group=df))+
  geom_line()+
  ylab("density")+
  xlab("t")+
  scale_x_continuous(breaks=-5:5)

As discussed in lecture, the t-distribution approaches a normal distribution as degrees of freedom increase. For example, 95% of the values in normal distribution are smaller than Z = 1.644854 standard deviations. The corresponding 95% values of t are shown to approach 1.644 as degrees of freedom increase.

qnorm(.95,0,1)
#> [1] 1.644854
qt(p=.95,df=c(1,5,10,100,1000))
#> [1] 6.313752 2.015048 1.812461 1.660234 1.646379

10.6 Conceptual II: Simulating power curves

The above simulations assumed that an experimental manipulation had no effect, therefore the expectation is that measurements from both groups were taken from the same distribution, and that any differences between groups would be explained by random sampling.

Another possibility is that the experimental manipulation was effective and caused a difference between the groups. In this case the expectations are that the measurements from each group are from different distributions. Specifically, some causal force from the manipulation is assumed to change performance, resulting in systematic changes to the scores in the group that received the manipulation. The experimental manipulation could in principle change almost any property of the distribution, and differences in means are often a focus of research interest.

10.6.1 What proportion of experiments would be significant…?

The purpose of this conceptual section is to use simulation techniques to ask what proportion of experiments would be significant (at some alpha level, say p<.05) if the experimental manipulation worked and caused a difference between group means.

First, we should be confident in a basic answer. If we set an alpha criterion of p<.05, what proportion of experiments will be significant according to the null-hypothesis (that there is no difference between groups)? We can conduct this simulation, and see how many experiments out of 1000 returned a p-value of less than .05. The answer should be, by definition, approximately .05.

sim_ps <- replicate(1000, t.test(replicate(10, mean(rnorm(5, 0, 1))),
                                 replicate(10, mean(rnorm(5, 0, 1))),
                                 var.equal = TRUE)$p.value)
hist(sim_ps)
length(sim_ps[sim_ps < .05])/1000
#> [1] 0.045

A next question would be something like, what proportion of experiments would be significant if there actually was a difference between the means of group A and B. For example, here we assume that group A has a mean of 0, and group B has a mean of .25, and that both distributions have the same standard deviation (sd=1). In this design, with N = 10 in each group, and 5 scores measured per subject, the probability of getting a p < .05 is much higher than 5%.

sim_ps <- replicate(1000, t.test(replicate(10, mean(rnorm(5, 0, 1))),
                                 replicate(10, mean(rnorm(5, .25, 1))),
                                 var.equal = TRUE)$p.value)
hist(sim_ps)
length(sim_ps[sim_ps < .05])/1000
#> [1] 0.224

10.6.2 Effect-size

We are working toward plotting power-curves, which could show us the probability of getting a significant result as a function of design parameters like number of subjects, and number of scores per subject (observations per cell), as well as the assumed “effect-size” of the manipulation. Effect size has a regular meaning, which is the idea that an experimental manipulation can cause change in different amounts, some manipulations might have big effects (e.g., cause a really big change in the mean), or small effects.

Effect-size can also refer to specific statistical units. For example, Cohen proposed that effect-sizes for mean differences between two groups could be standardized. For example, if there was a mean difference of between group A and B, it is not clear if this is a big or small difference. If the underlying distributions were unit normal distributions, a mean shift of 1 is very large, it represents shifting the distribution by a whole standard deviation. If the underlying distributions had a large standard deviation, say 100, then shifting the mean by a 1 isn’t very large with respect to the total variability.

So, Cohen’s effect size can be expressed as the idea to normalize a mean difference by a standard deviation.

\(\text{Cohen's d} = \frac{\text{mean difference}}{\text{standard deviation}}\)

We will make use of these ideas in out power-curve simulations. Specifically, for convenience, we will use unit normal distributions as the parent distributions for our group scores. And, we will only simulate differences in the mean between groups. As a result, when we increase the mean difference by .25, .5, or 1, or another number, we can interpret these differences in terms of standard deviation units.

10.6.3 Power-curve as a function of effect-size

In this example we conduct a range of simulations assuming that effect-size increases from 0 to 1.5, in steps of .1. All simulations have the same design parameters: there are N=10 subjects per group, and X=5 scores are taken for each subject. The power curve shows the proportion of experiments that would return a result of p < .05 at each level of effect-size. For example, when the assumed effect-size is 1, then this design will detect an effect of that size at the p<.05 level close to 100% of the time. However, the “power” of the same design to detect smaller effects decreases following this curve.

effect_sizes <- seq(0,1.5,.1)
prop_significant <-c()

for(i in 1:length(effect_sizes)){
  sim_ps <- replicate(1000, t.test(replicate(10, mean(rnorm(5, 0, 1))),
                                   replicate(10, mean(rnorm(5, effect_sizes[i], 1))),
                                   var.equal = TRUE)$p.value)

  prop_significant[i] <- length(sim_ps[sim_ps < .05])/1000
}

plot_df <- data.frame(effect_sizes,
                      prop_significant)

ggplot(plot_df, aes(x=effect_sizes,y=prop_significant))+
  geom_line() +
  geom_point() +
  scale_x_continuous(breaks=seq(0,1.5,.1))+
  scale_y_continuous(breaks=seq(0,1,.1)) +
  ylab("Proportion Significant")

10.7 Lab 10 Generalization Assignment

10.7.1 Instructions

In general, labs will present a discussion of problems and issues with example code like above, and then students will be tasked with completing generalization assignments, showing that they can work with the concepts and tools independently.

Your assignment instructions are the following:

  1. Work inside the R project “StatsLab1” you have been using
  2. Create a new R Markdown document called “Lab10.Rmd”
  3. Use Lab10.Rmd to show your work attempting to solve the following generalization problems. Commit your work regularly so that it appears on your Github repository.
  4. For each problem, make a note about how much of the problem you believe you can solve independently without help. For example, if you needed to watch the help video and are unable to solve the problem on your own without copying the answers, then your note would be 0. If you are confident you can complete the problem from scratch completely on your own, your note would be 100. It is OK to have all 0s or 100s anything in between.
  5. Submit your github repository link for Lab 10 on blackboard.

10.7.2 Problems

  1. Your task is to obtain the data from the following paper and conduct a reproducible analysis of their results.

Rosenbaum, D., Mama, Y., & Algom, D. (2017). Stand by Your Stroop: Standing Up Enhances Selective Attention and Cognitive Control. Psychological science, 28(12), 1864-1867.

Note, the paper, the data, and an existing reproducible analysis of this data is available at https://crumplab.github.io/statisticsLab/lab-10-factorial-anova.html#important-stuff-4

The re-analysis should focus only on Experiment 3. There are three main goals

  1. Reproduce as much of the analysis as possible using only paired-sample t-tests. Note, the authors reported a 2x2 repeated measures ANOVA, but consider how the same questions could be answered by t-tests (2 points)
  2. Reproduce a graph of the means, like shown in the paper (2 points)
  3. Present a power-curve analysis for the design. (2 points)

Note a copy of the R markdown document described in the solution video can be found in the github repository for this course: https://github.com/CrumpLab/psyc7709Lab/tree/master/lab_solutions
